Semiconductor Manufacturing

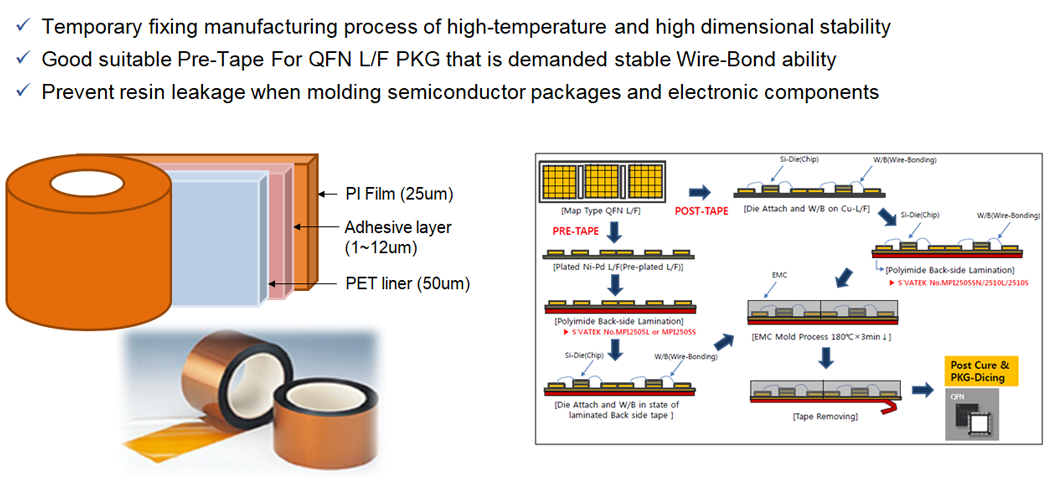

Main Product_ QFN Backside Film

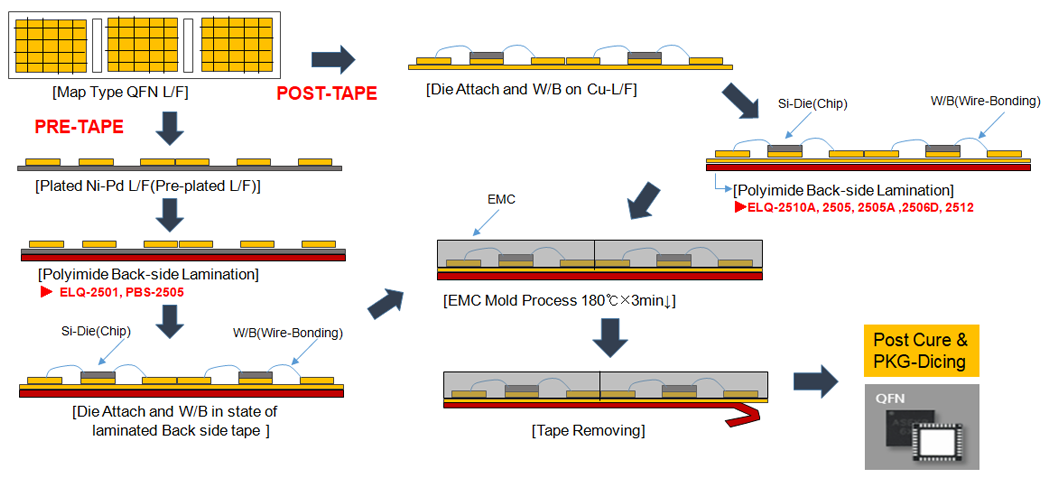

Main Product_ QFN Backside Film(Process Option)
Main Product_ QFN Backside Film Line-up
Item Unit MPI2510 MPI2505 ELQ2505A MPI2506D ELQ2510 ELQ2501 PBS-2505
Total Thickness um 85 80 80 81 87 76 80
PI film / Adhesive um 25/10 25/5 25/5 25/6 25/10 25/1 25/5
PET liner um 50 50 50 50 50 50 50
Adhesion strength RT 400 300 140 400 70 70 70
175℃(30sec) 380 250 100 320 60 60 50
175℃(30min) → RT (30min) 450 380 190 480 180 80 120
Main Product_ QFN Backside Film(Process Option)
