ELEVEN ELECTRON
Semiconductor Manufacturing

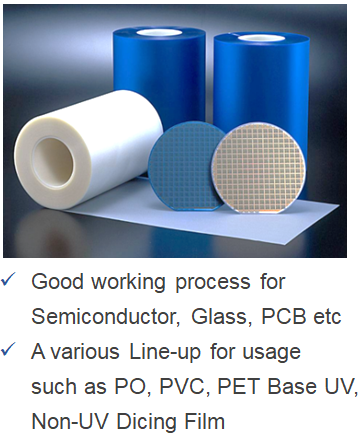

Main Product_ UV & Non-UV Wafer Dicing Tape
ITEM Unit Non UV Dicing UV Dicing
EO-DA110 EO-DA085 ET-RE090 EO-DA090 EO-BG170 EP-DB090 EP-DW090 ET-DC125
Base
Film
Type - PO PO PET PO PO PVC(blue) PVC (white) PET
Thickness um 80 80 50 80 150 80 80 100
Adhesive Thickness um 30 5 40 10 20 10 10 25
Young’s modulus (MD) kgf/cm2 550 550 - 550 900 1200 1200 -
Tensile strength(MD) gf 1200 1200 - 1200 2100 1900 1900 -
Elongation(MD) % 300 300 - 300 400 200 200 -
Peeling Force
(BF UV)
gf/inch 40~60 20~30 1500~2000 50~150 1500~2000 200~300 200~300 1500~2000
Peeling Force
(AF UV)
- - - 20 30 30 30 10
